Noble Speed Hot Rod Wiring kit 12volt
All color codes are ford era correct with other than turn signals.

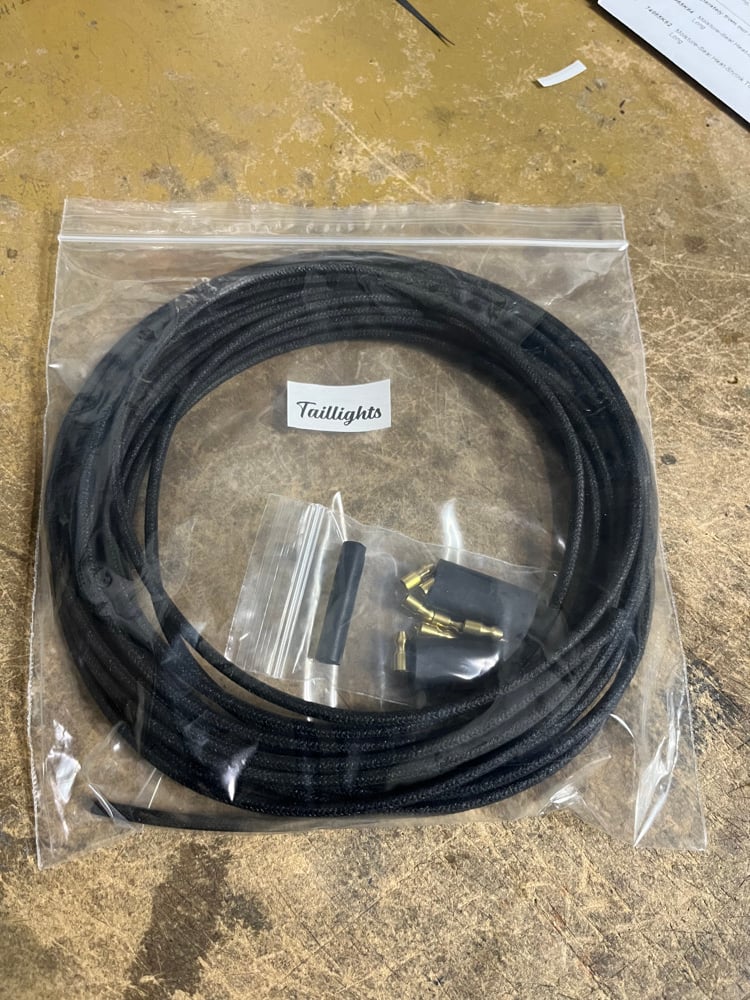

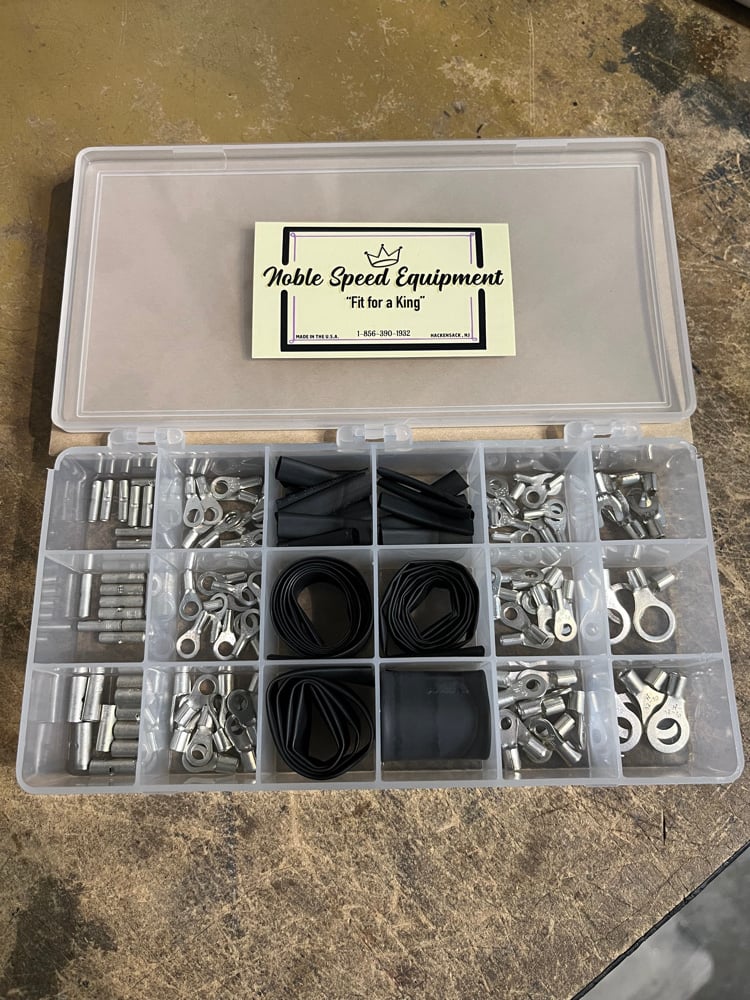

All USA made wire. Headlights, turn signals , taillights are 20 foot , brake circuit is 33 feet. All lighting circuits come with early ford bullet connectors. Also comes with a ring terminals , butt connectors, and heat shrink in a storage box.
This is a universal wiring kit meant for an early Ford hotrod with fuse panel on the drivers side fire wall. Kits for generator and 1 wire alternator. The 1 wire kits have an 8ga charge wire as per power master's website.

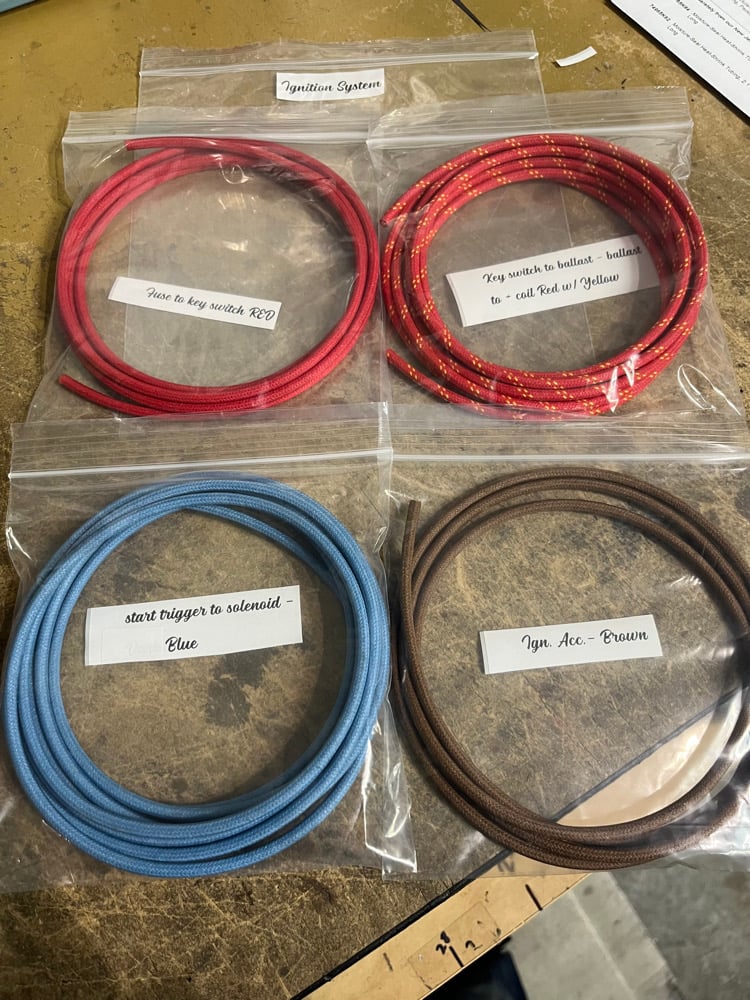

Ignition:
Fuse to key switch 12ga
key switch to ballast - ballast to + coil 12ga
start trigger to solenoid 12ga 10ft
IGN ACC . (switched hot) 12ga

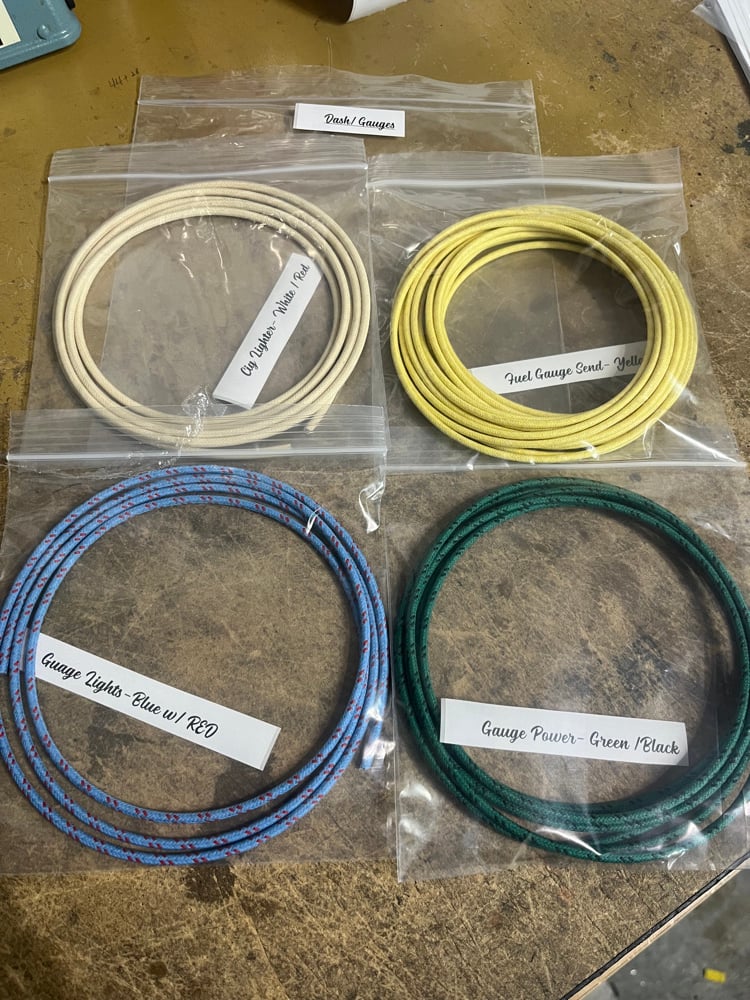

Dash / gauges:
Guage lights -16ga
fuel gauge send -18ga
gauge power- 16ga
cig lighter - 14ga

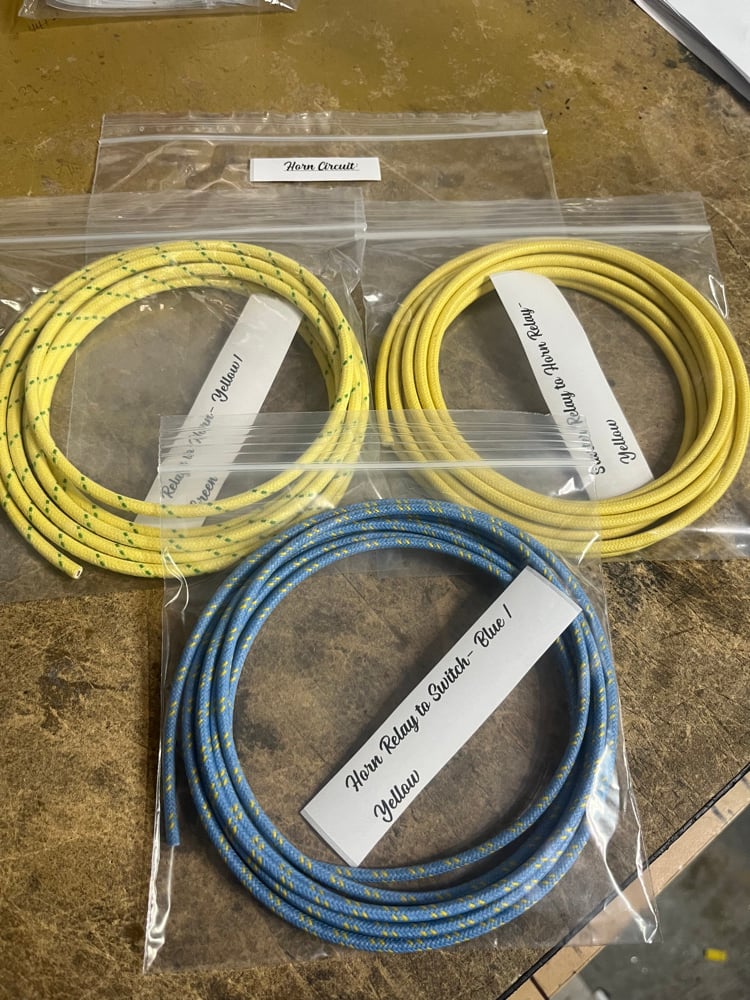

Horn Circuit:
Starter relay to horn relay -12ga
relay to horn -12g
horn relay to switch- 14ga

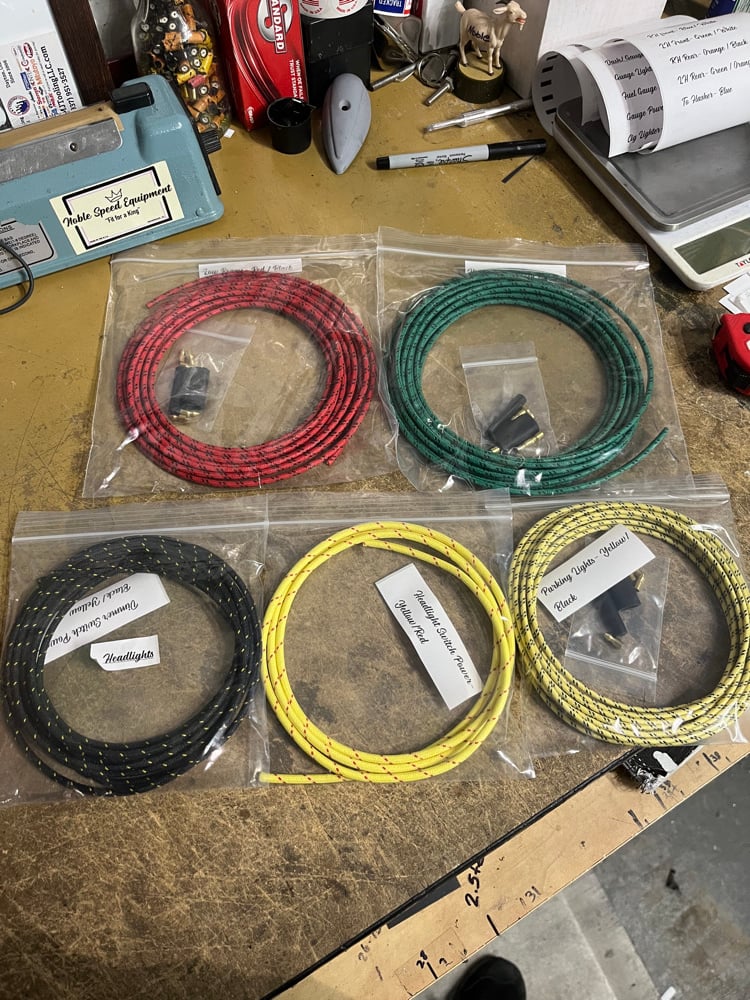

Lighting front
Headlight switch power 12ga
Dimmer switch power Black
Parking lights 18ga Yellow
Low beam 14ga
High beam 14ga
for a 7inch sealed beam headlight or LED
-OR-
Low Beam 12ga
High Beam 12 ga
for Halogen modern style bulb (retrofit )
Taillights / Lisc plate: 14ga

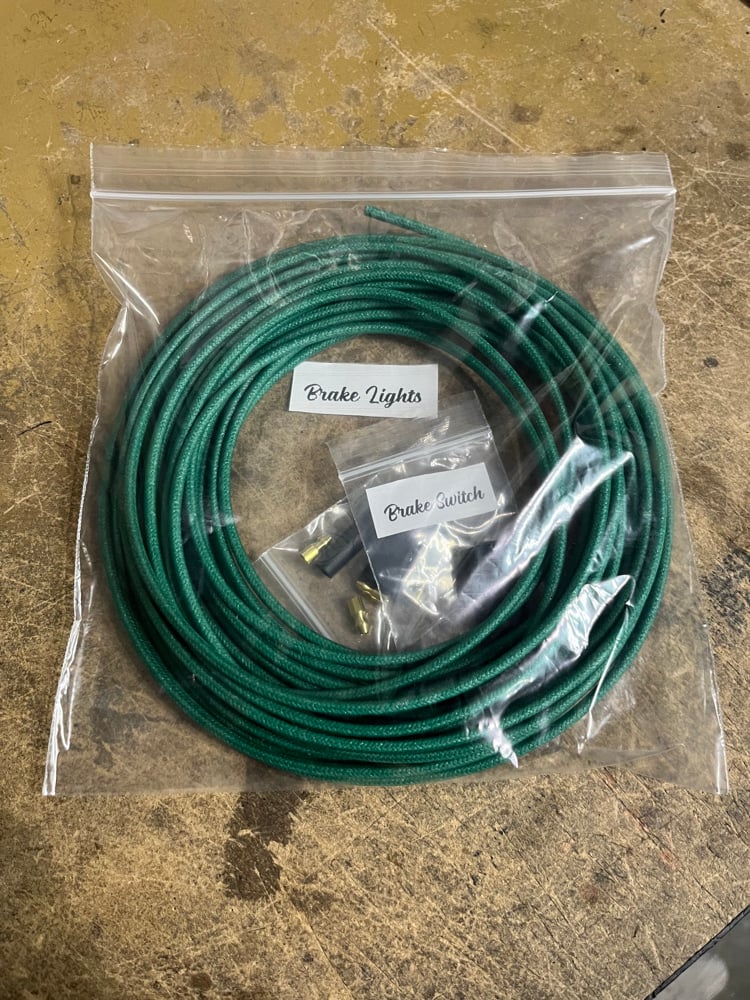

Brake lights: 14ga

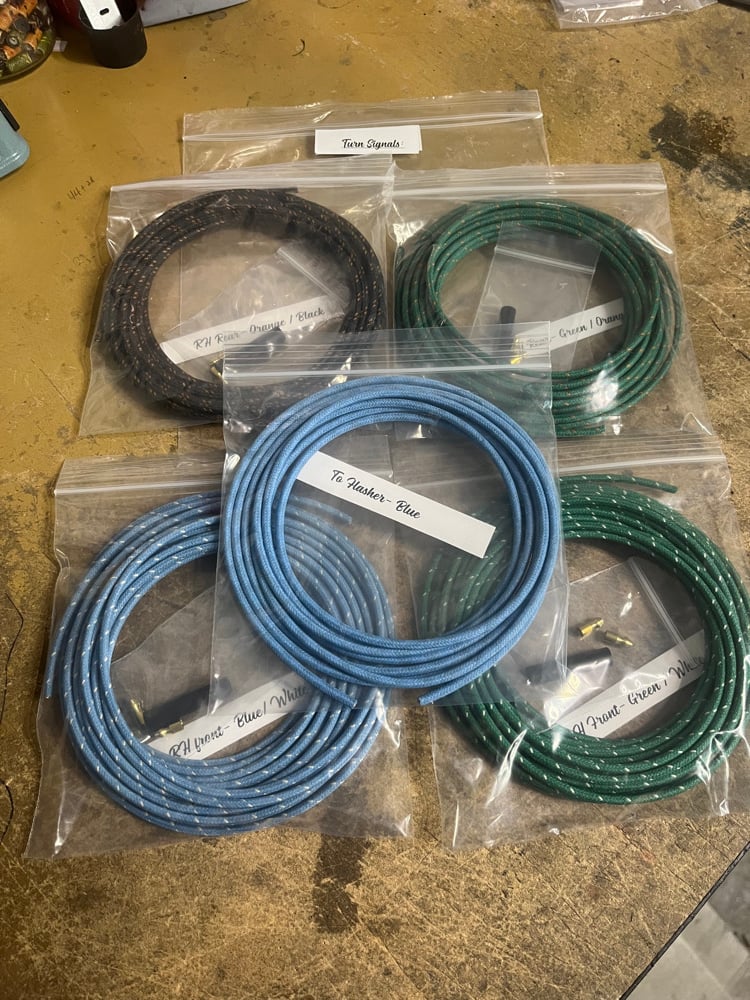

Turn signals:
RH front 16ga
LH front 16ga
RH rear 16ga
LH rear 16ga
to flasher 14ga

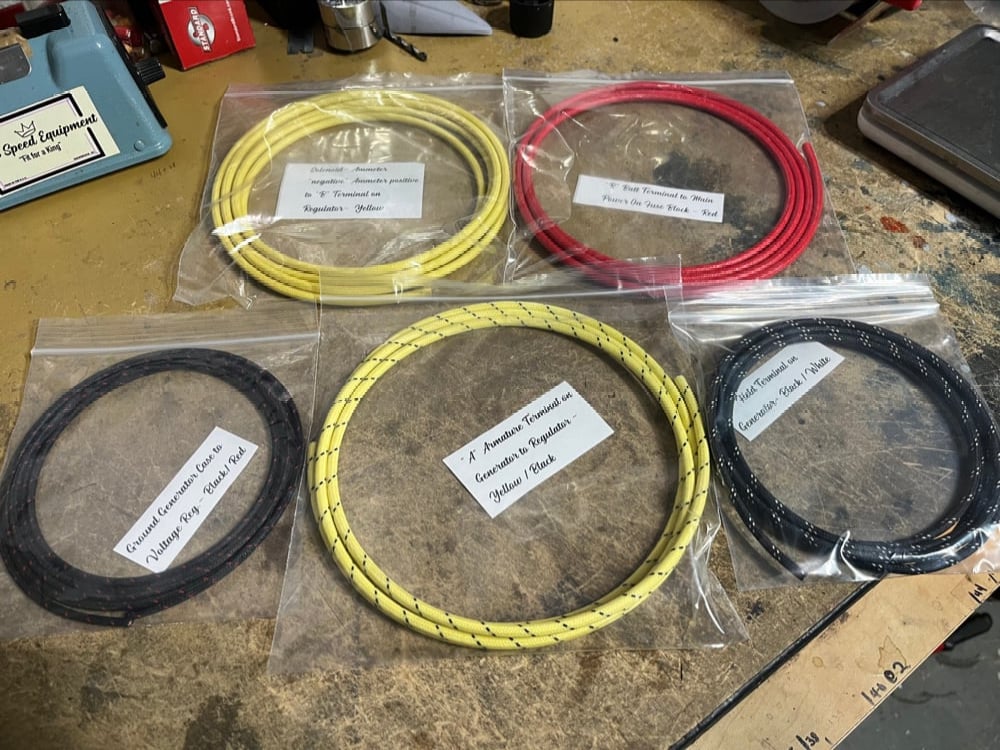

Charging circuit: for generator & voltage regulator 3 flags terminals
(Battery + to solenoid)
Solenoid to ammeter “negative” 10ga
ammeter positive to “B” terminal on regulator 10 ga.
“B” Batt terminal to main power on fuse block 10ga
“A” armature terminal generator to regulator 10ga
“F” field terminal on generator 12ga
Ground on generator case to voltage regulator body- 14ga
Charging circuit: for alternator
8ga charge
10ga battery
Alt exciter 14ga

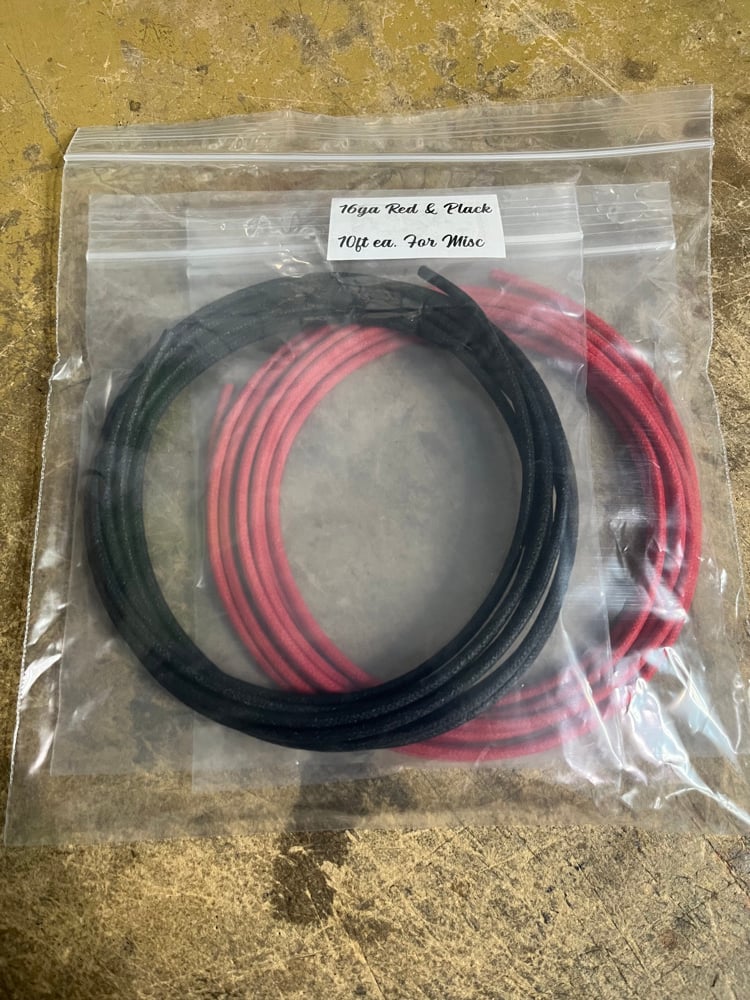

Wire for Misc:
16 ga black 10ft
16ga red 10ft
