Build your own kit!
Here are all the circuits that are in my full kit listed individually.
Select the circuit(s) you'd like and add them to the cart.
All lighting circuits come with ford style brass bullet connectors
Remember, I have black & red primary wire in 5ft increments too.
here is the list of what's is included in each:

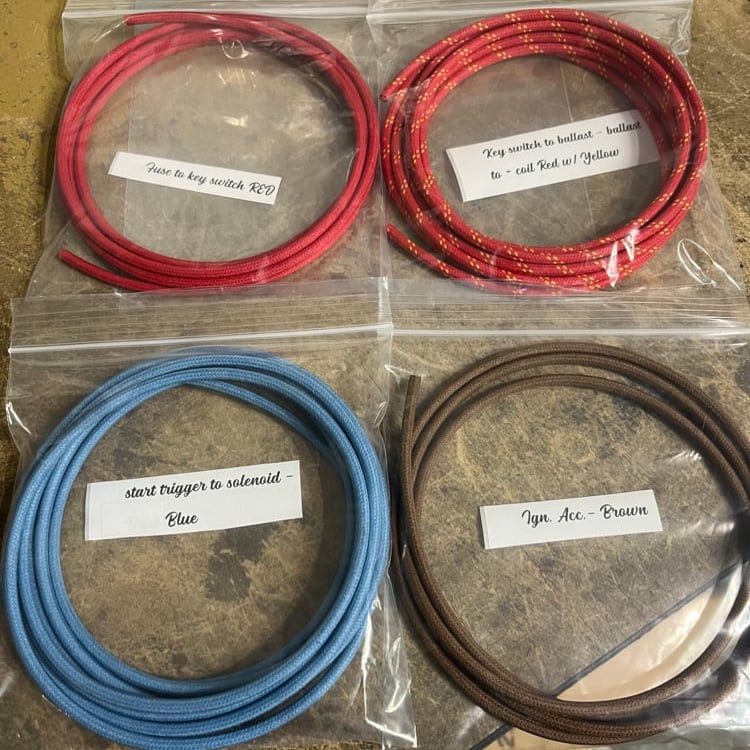

Ignition:
Fuse to key switch 12ga
key switch to ballast - ballast to + coil 12ga
start trigger to solenoid 12ga
IGN ACC . (switched hot) 12ga

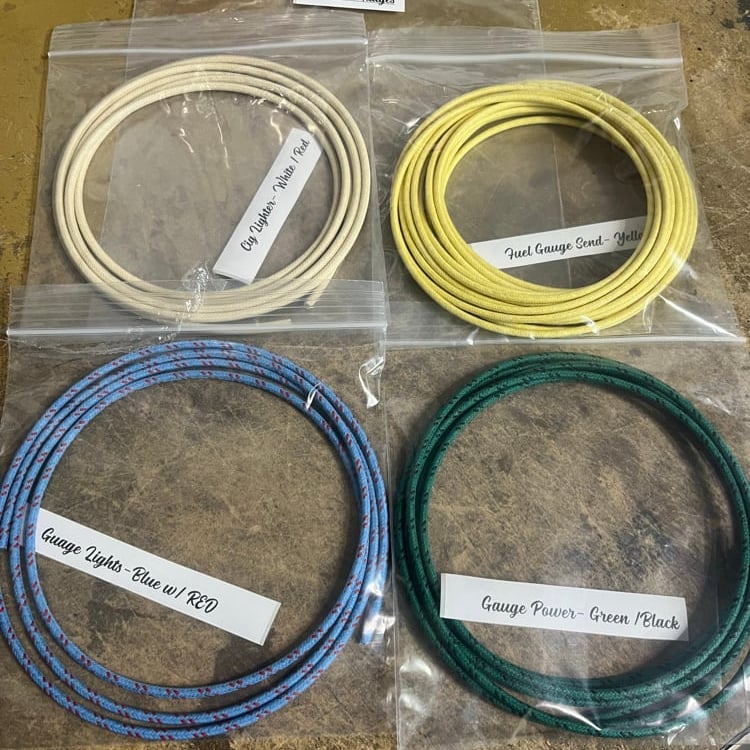

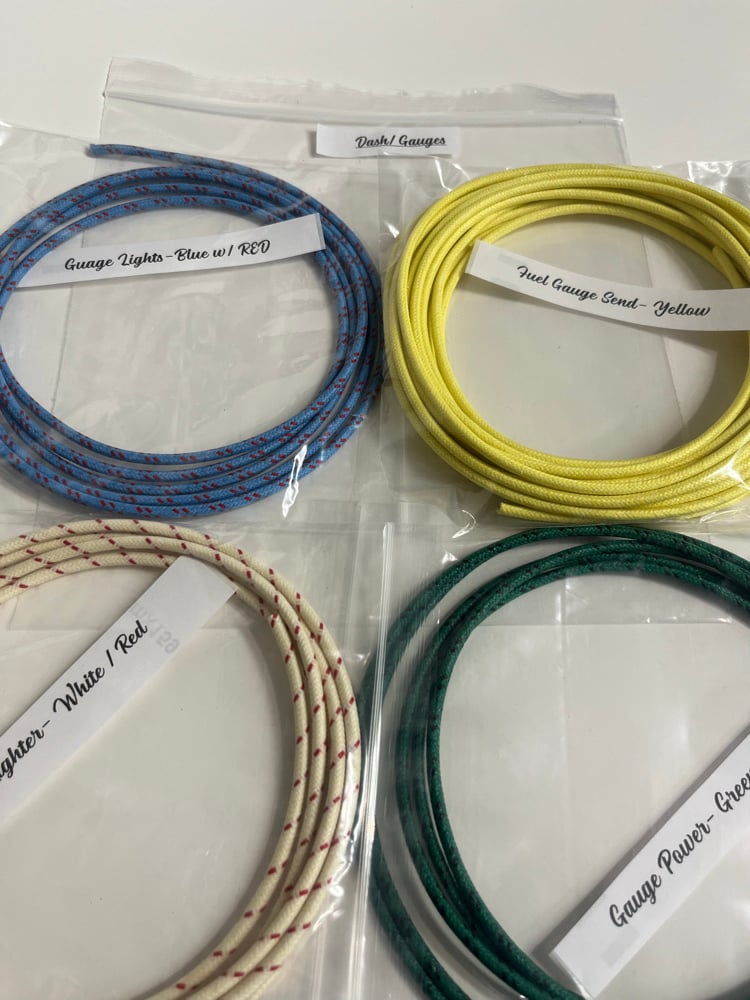

Dash / gauges:
Guage lights -16ga

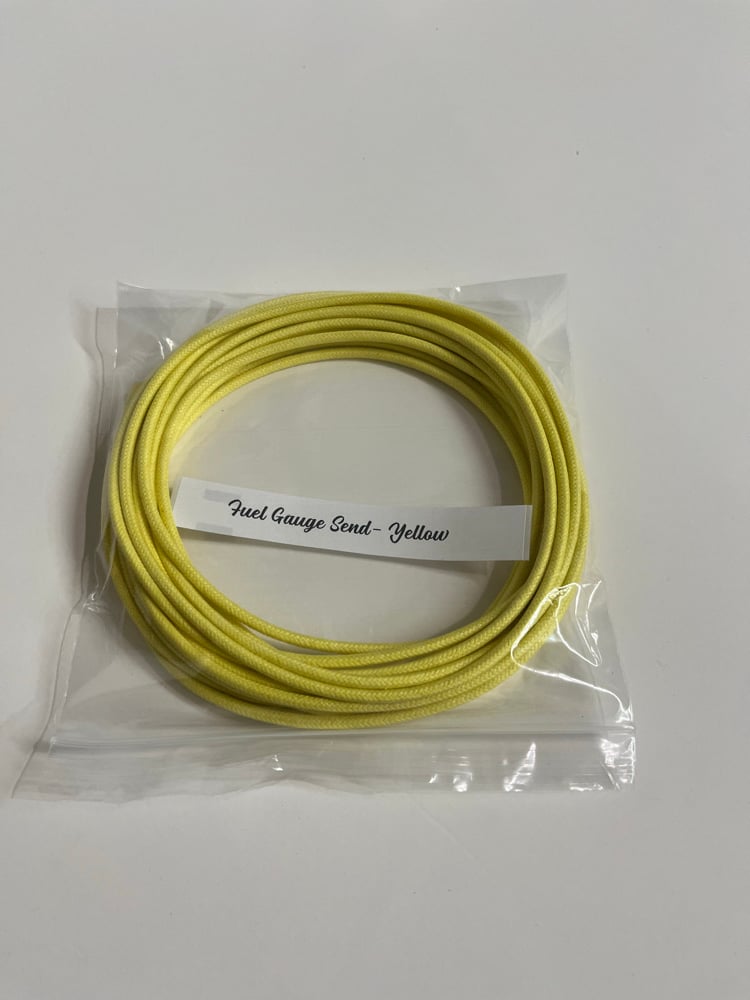

fuel gauge send -18ga
gauge power- 16ga
cig lighter - 14ga

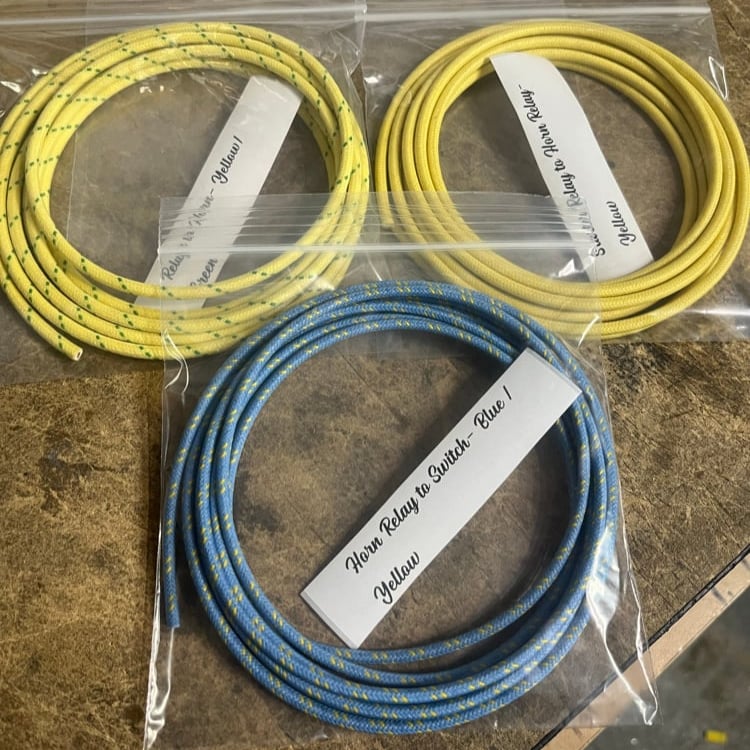

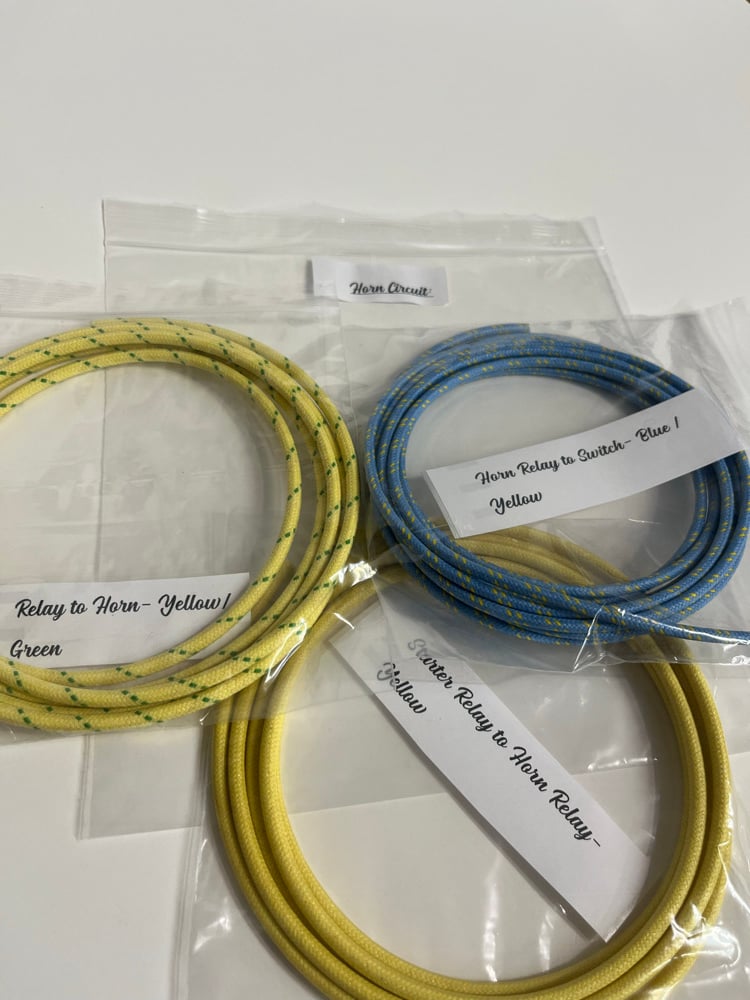

Horn Circuit:
Starter relay to horn relay -12ga
relay to horn -12g
horn relay to switch- 14ga

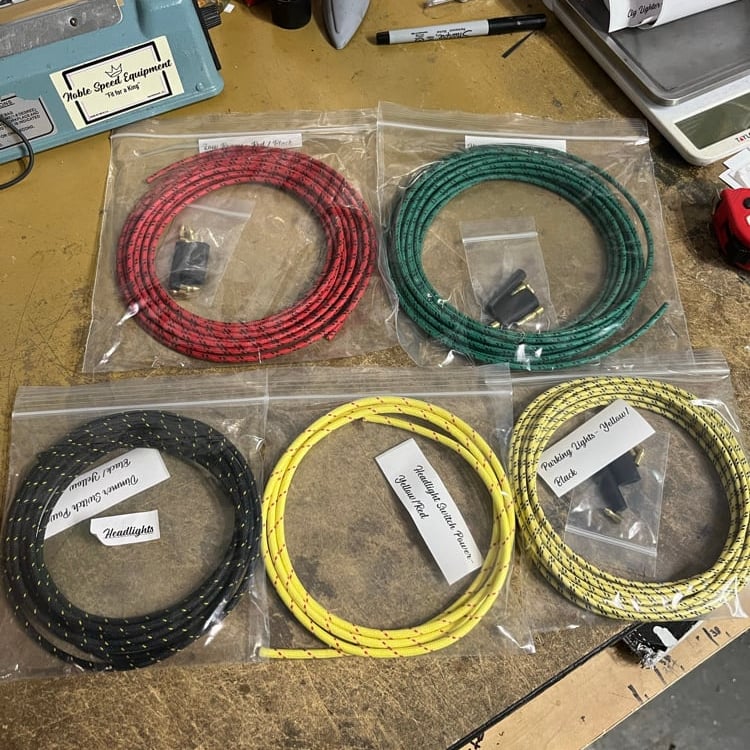

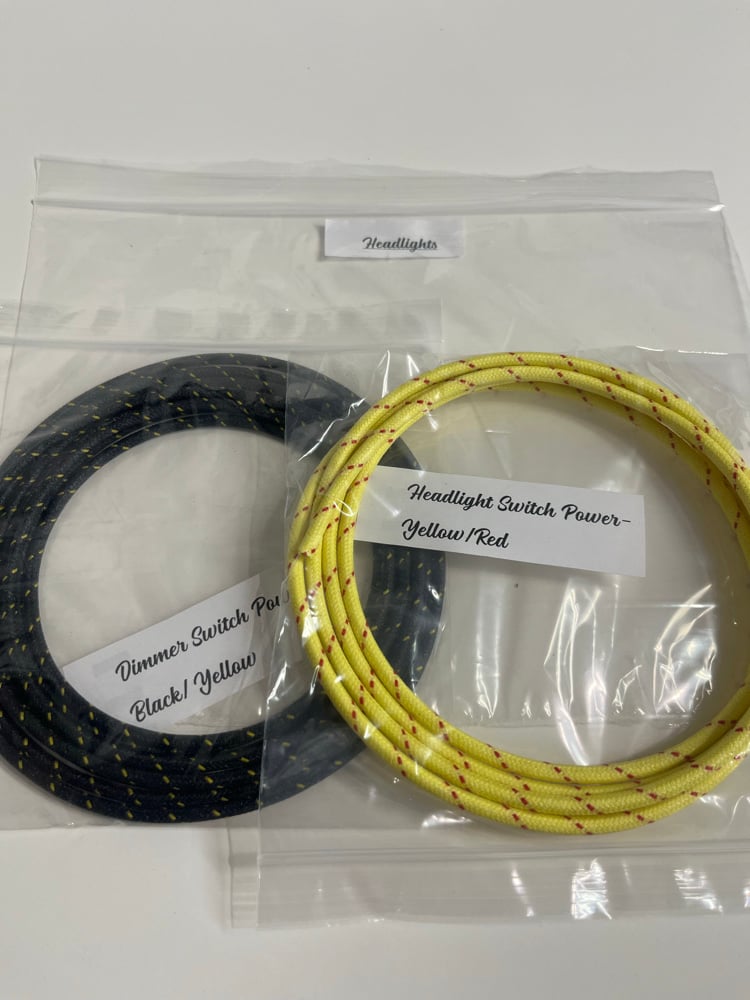

Lighting front
Headlight switch power 12ga
Dimmer switch power Black

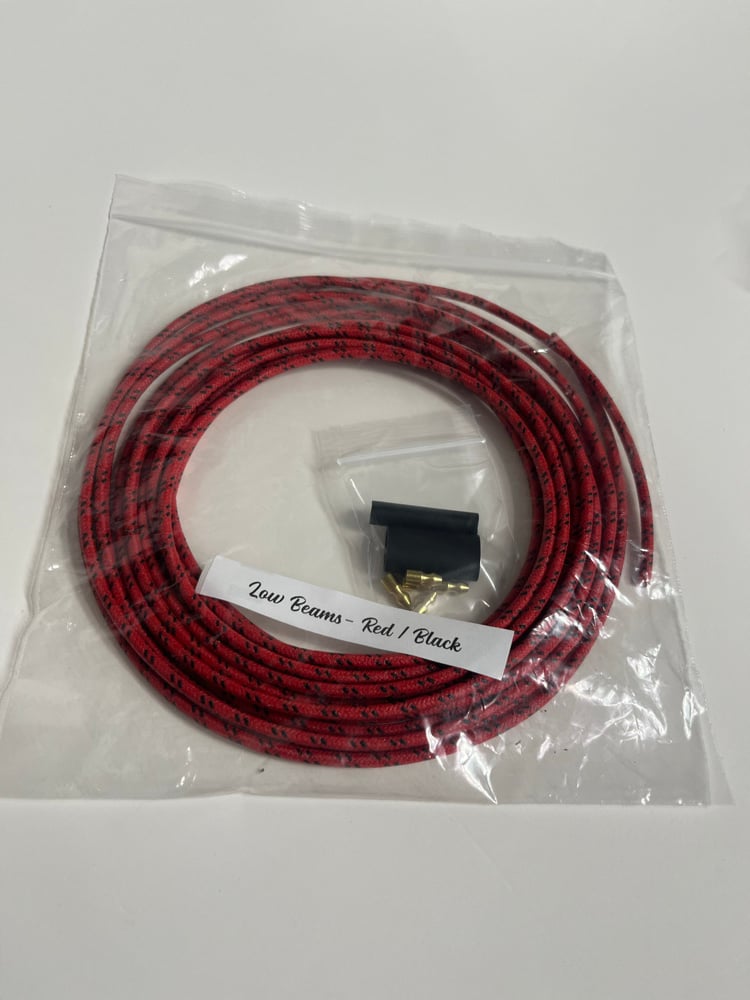

Low beam 12ga

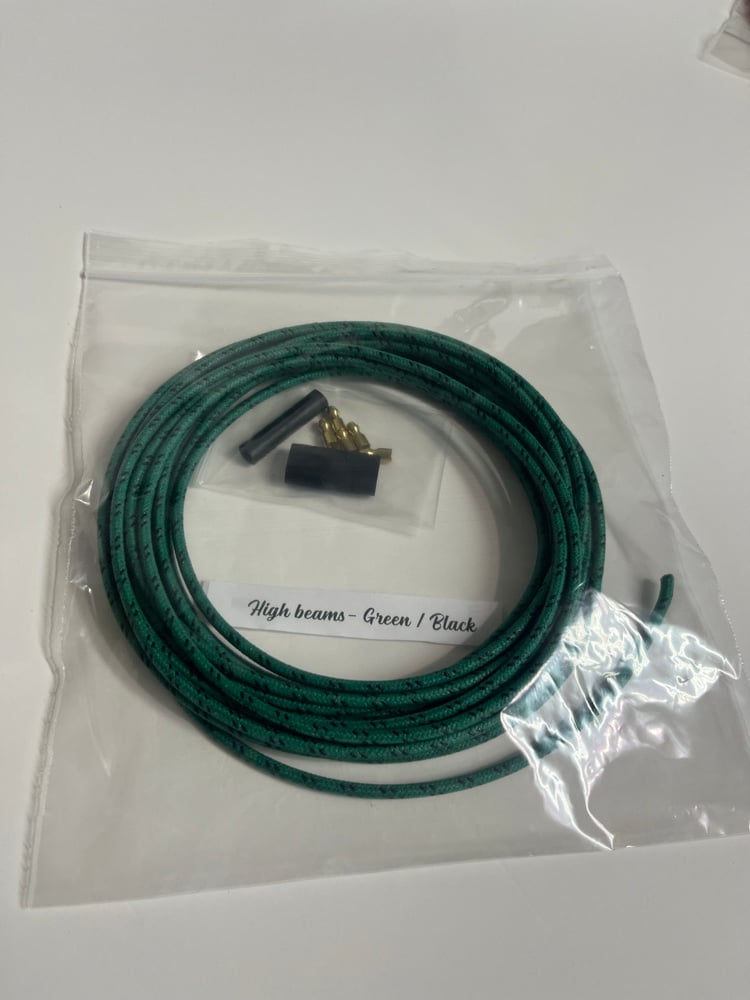

High beam 12ga

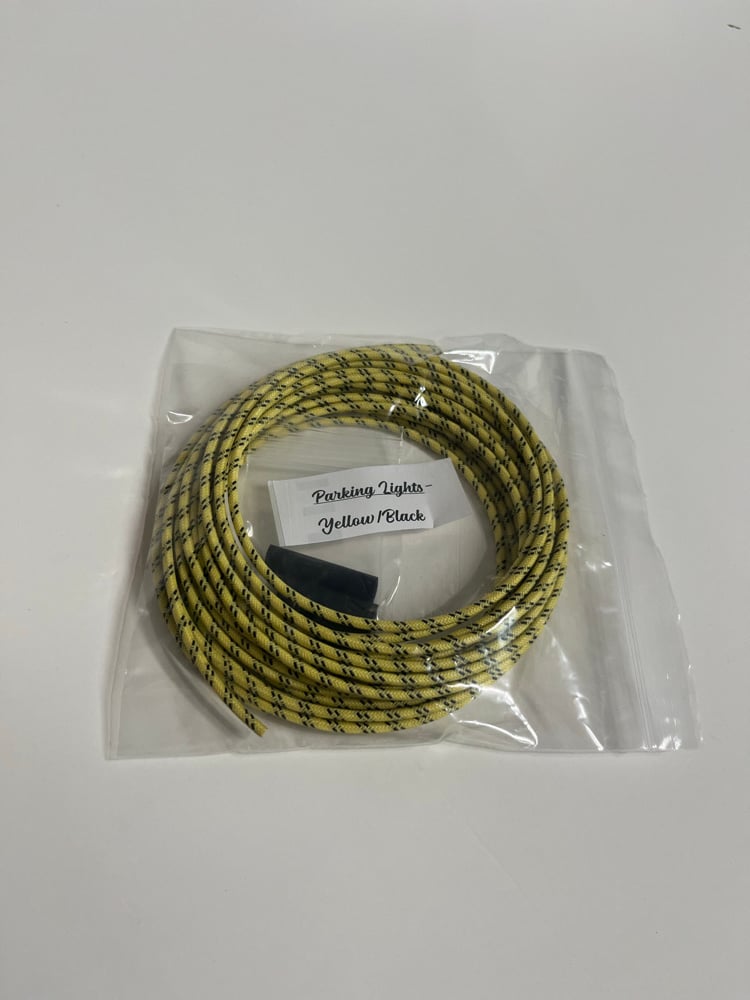

Parking lights 18ga Yellow
Taillights / Lisc plate: 14ga

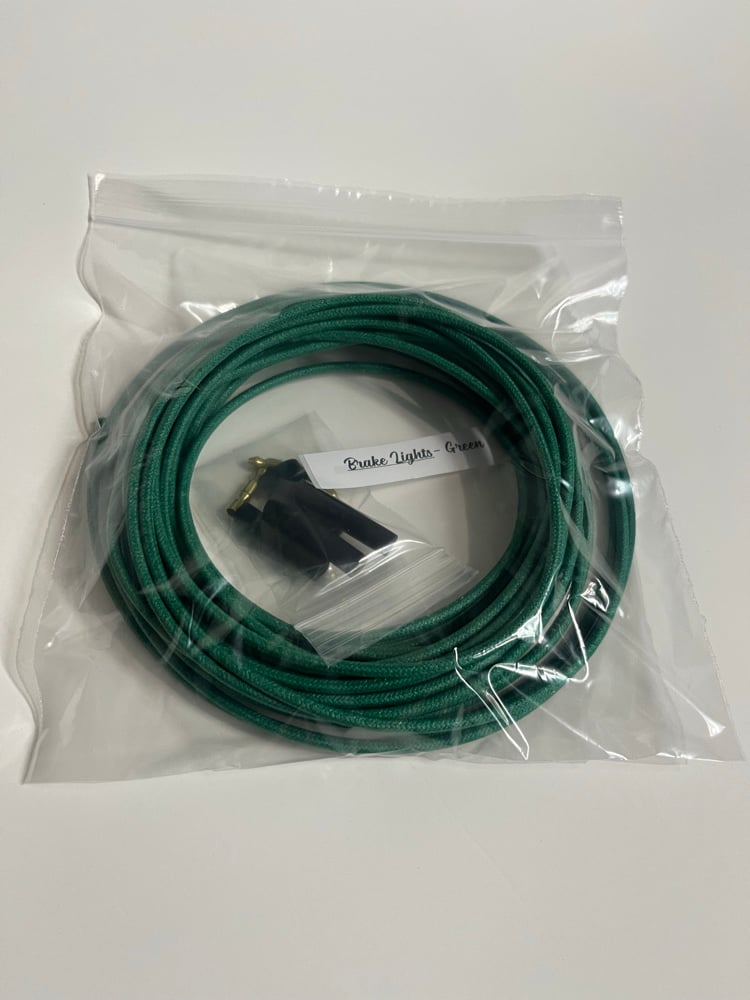

Brake lights: 14ga

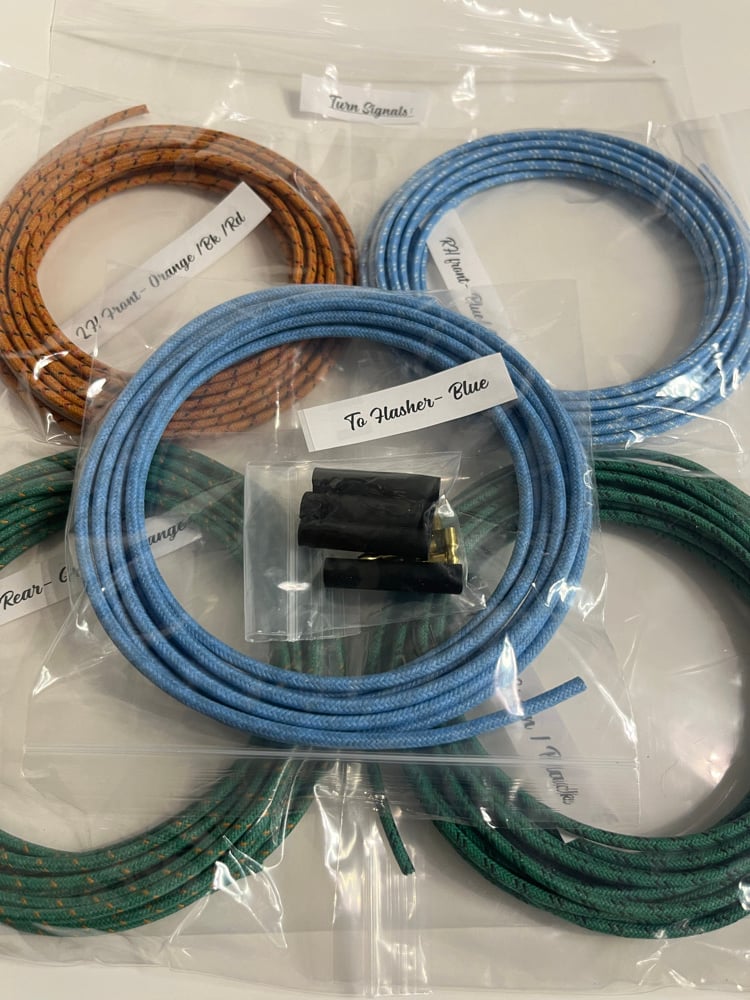

Turn signals:
RH front 16ga
LH front 16ga
RH rear 16ga
LH rear 16ga
to flasher 14ga

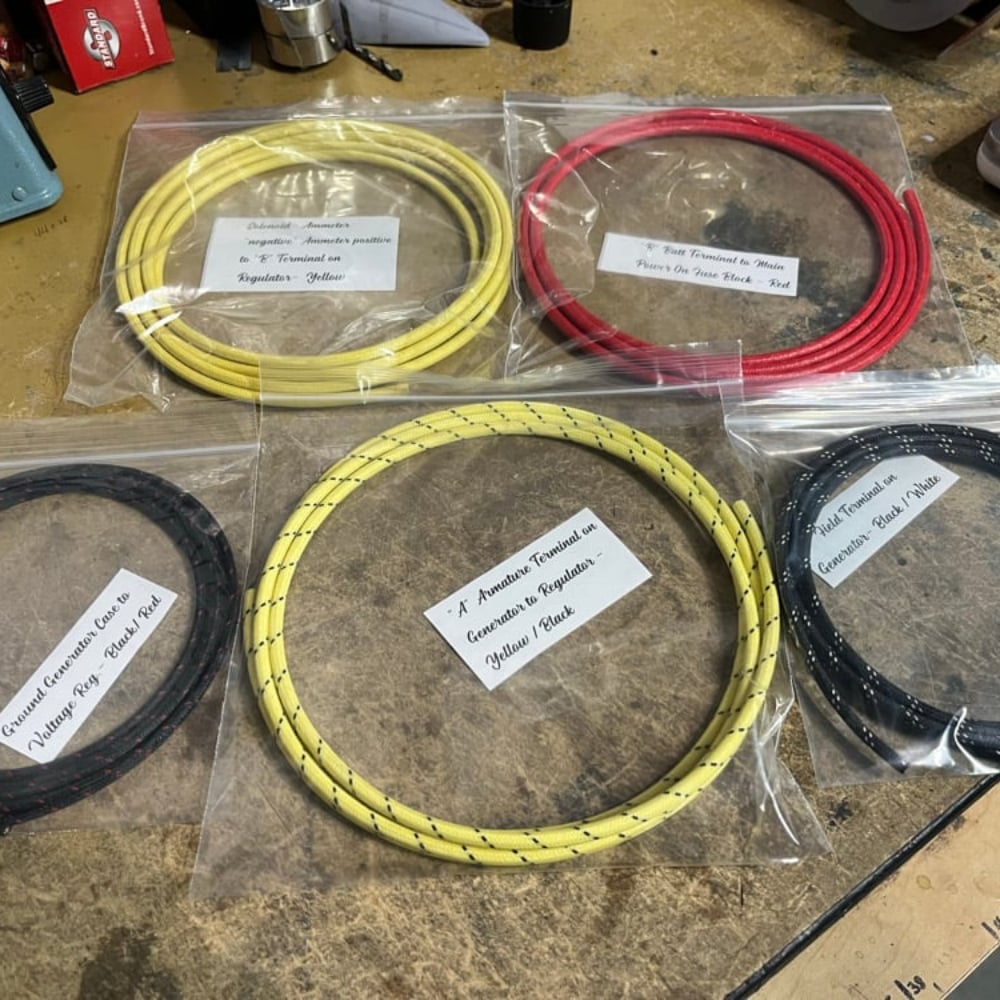

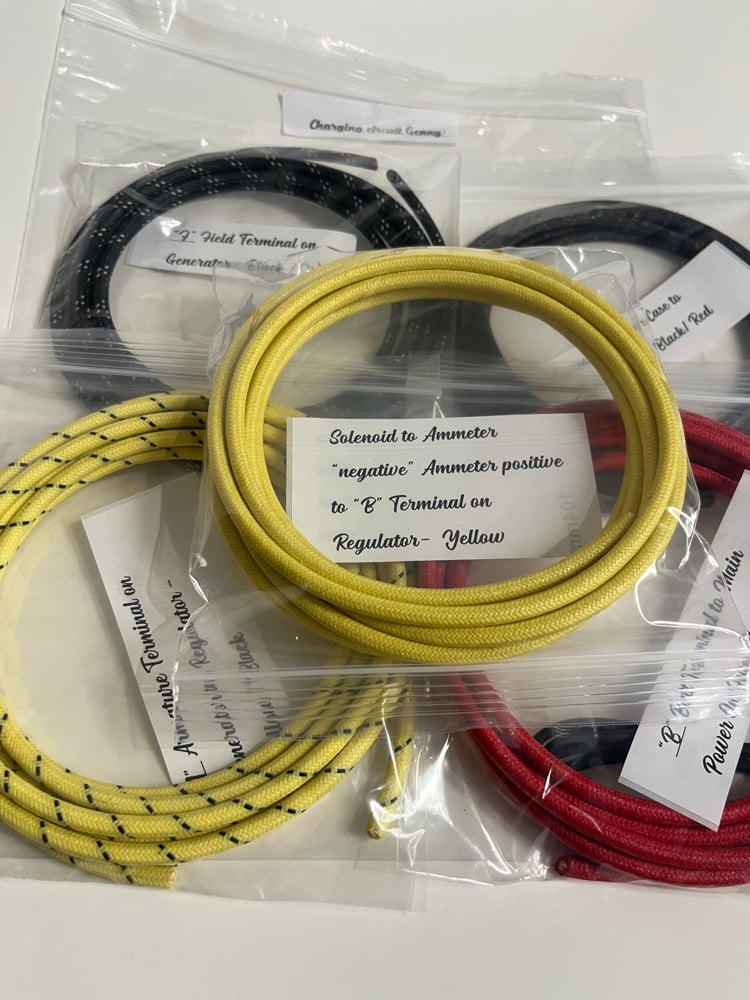

Charging circuit: for generator & voltage regulator 3 flags terminals
(Battery + to solenoid)
Solenoid to ammeter “negative” 10ga
ammeter positive to “B” terminal on regulator 10 ga.
“B” Batt terminal to main power on fuse block 10ga
“A” armature terminal generator to regulator 10ga
“F” field terminal on generator 12ga
Ground on generator case to voltage regulator body- 14ga
Charging circuit: for alternator
8ga charge
10ga battery
Alt exciter 14ga
