LINKAGE ARM(S) NOT INCLUDED please see other listing thanks

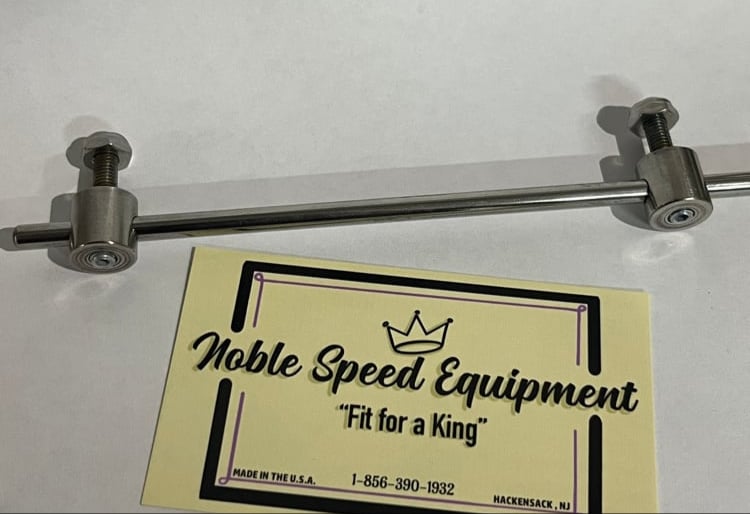

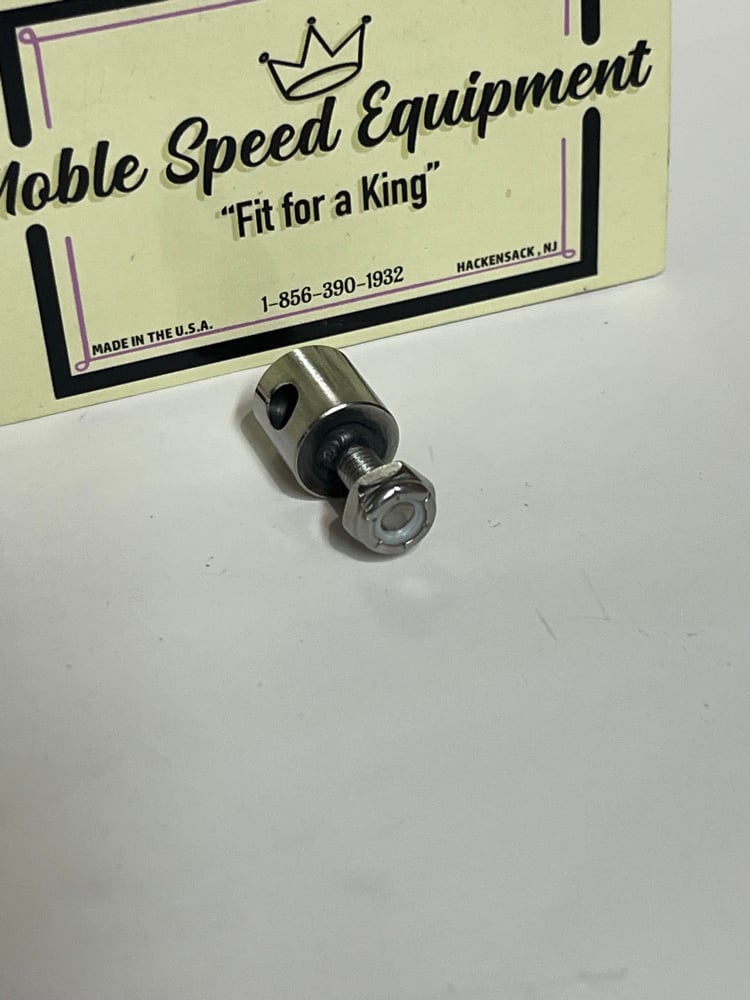

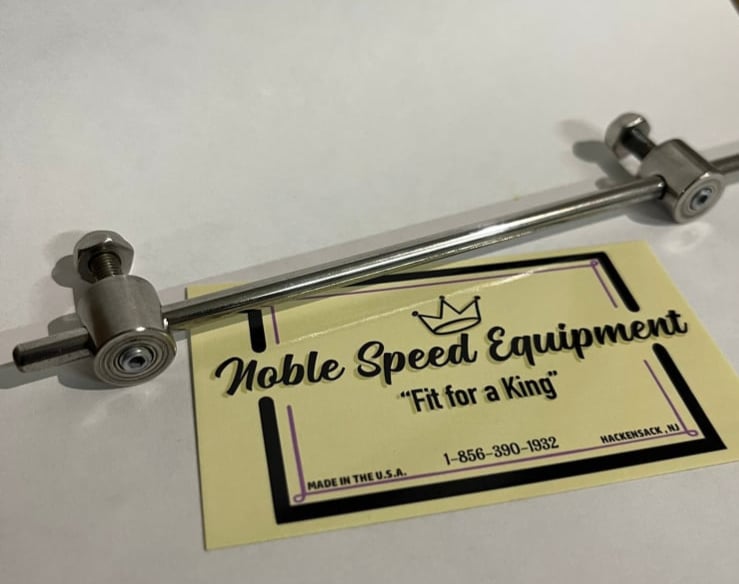

Stainless steel set screw style linkage swivels
-for 3/16 linkage rod.
-mounting to arm is 3/16 (#10) on the upper hole.
I make these in house because I couldn't find a USA source. These are my design. I chose thread the shank 10/32. There is nothing fun about playing with microscopic c-lips on the backside of a linkage arm. This feature also enables you to adjust the swivel to the arm and eliminate excessive movement with the included thin profile nylon stop nut.
-Linkage rods are 3/16 diameter stainless steel.
-standard lenght is 12 inches long
- If your setup needs a longer rod 12 inches + please send me a message and I will get you set up.
- I can send you a cut to length linkage if you let me know your center to center measurement on your throttle shafts.
BUILDERS NOTE: Once you have trimmed the linkage rod to length I recommend filing a small flat on the rod. The flat will give the set screw a good landing area and help keep things secure and locked in place.
Made in the USA
